Thông tin chi tiết sản phẩm:
|
| Voltage: | 1000V | Product Name: | Insulation Piercing Connector |
|---|---|---|---|
| Main Line: | 16-95 mm2 | Branch Wire: | 1.5-10 mm2 |
| Model Number: | JJC1-95/10 | Bolt Number: | 1 |
| Rated current: | 75A | Origin: | CN(Origin) |
| Applicable cable: | Copper-aluminum wire | Spined material: | tinned copper |
| shell material: | PA nylon |

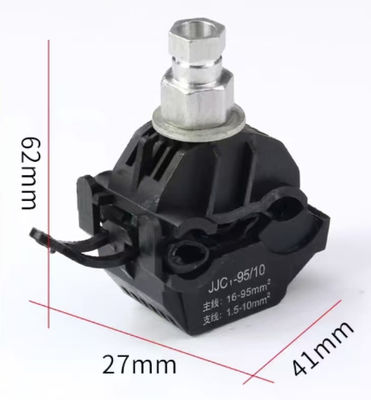

1KV Cable Insulation Piercing Connectors JJC1-95/10 Puncture Clamp No Peeling Piercing Clamp High Low Voltage Cable Splitter

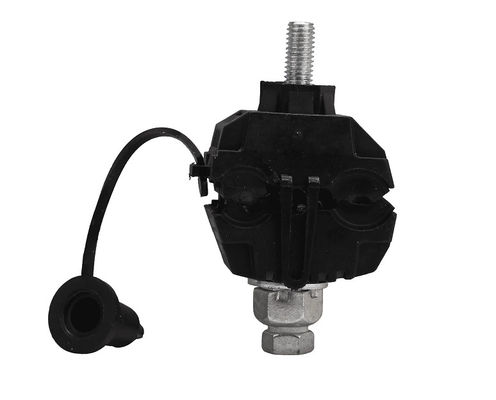

Cable Insulation Piercing Connectors
Used as a cable branch, it features simple installation, low cost, safety, reliability and no maintenance requirements.
Features
1. [Insulated Shell] Constructed with flame retardant insulation material, the shell is sturdy, resistant to damage, erosion, and aging, as well as damp, dustproof, suitable for various power projects in road lighting, industrial power, bridge lighting, and garden illumination.
2. [Sealed Structure] Filled with insulating thermal oil, the interior of the clamp forms a sealed structure upon installation, enhancing insulation and conductivity performance.
3. [No Peeling Required] This clamp allows for cable branching without the need to strip the insulation and phase main cables, ensuring a convenient and efficient installation process.
4. [Tin Plated] The piercing plate, made of pure copper and treated with tin plating, offers excellent conductivity, resistance to oxidation, can be used for copper and aluminum wires.
5. [Versatile Applications] Using this insulation piercing connector on live circuits can eliminate power outages, and use it on overhead services such as street lighting can ensure premium connections and prevent hotspots, loose connections, or damaged wires.
Specification:
Item Type: Insulation Piercing Connector
Material: PVC, Copper
Model Main Line Branch Line
JJC-1 1.5-35mm² 1.5-10mm²
JJC-2 16-95mm² 1.5-10mm²
JJC-3 16-95mm² 4-50mm²
JJC-4 50-150mm² 6-50mm²
Application
Packaging and delivery
10 pcs in one box
Port
Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 10 MOQ: 10 MOQ: 10
For more customization details, message supplier
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
